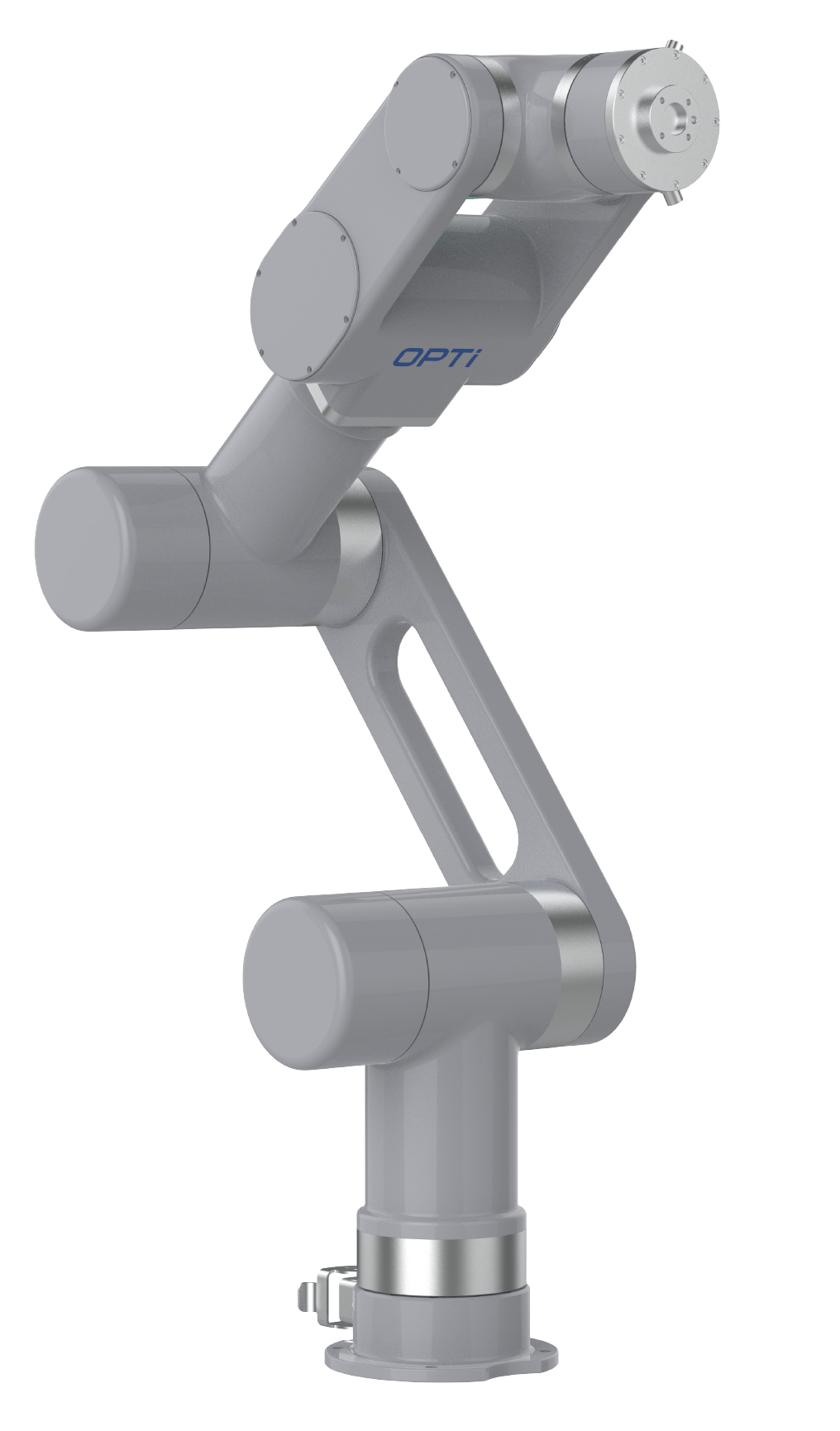

About OPTi3
Purpose-built for robotic welding, the OPTi3 combines Neuromeka's collaborative robot technology with advanced welding capabilities to deliver consistent, high-quality welds across a wide range of applications. Its lightweight design—weighing about 11 kg—makes installation, relocation, and manual handling simple while maintaining industrial performance.
The robot's symmetrical structure minimizes unnecessary movement during left- and right-side welding, improving efficiency and reducing cycle times. Equipped with a welding-specific end effector, sensorless collision detection, impedance control, direct teaching, and arc sensing (through-arc seam tracking) for 2F fillet welds, the OPTi3 provides a flexible and easy-to-use platform for modern welding automation.
Best for
- Small parts
- Portable jobs
- Tight-cell welding
Key features
- Easy to relocate
- Compact footprint
- Symmetric design
Applications
- Small bracket welding
- Light assembly work
- Compact part welding
- Mobile welding stations
Specifications
| Payload | 3 kg |
|---|---|
| Maximum Reach | 940 mm |
| Repeatability | ±0.1 mm |
| Degrees of Freedom | 6 (all revolute) |
| Weight | 11 kg |
| Maximum Tool Speed | 1 m/s |
| Maximum Joint Speed | 175°/s (J1–J2) · 180°/s (J3) · 220°/s (J4–J6) |
| Joint Motion Range | ±360° (J1·J4·J6) · ±150° (J2·J3) · ±130° (J5) |
| Workspace (at full payload) | 630 mm |
| IP Rating | IP54 |

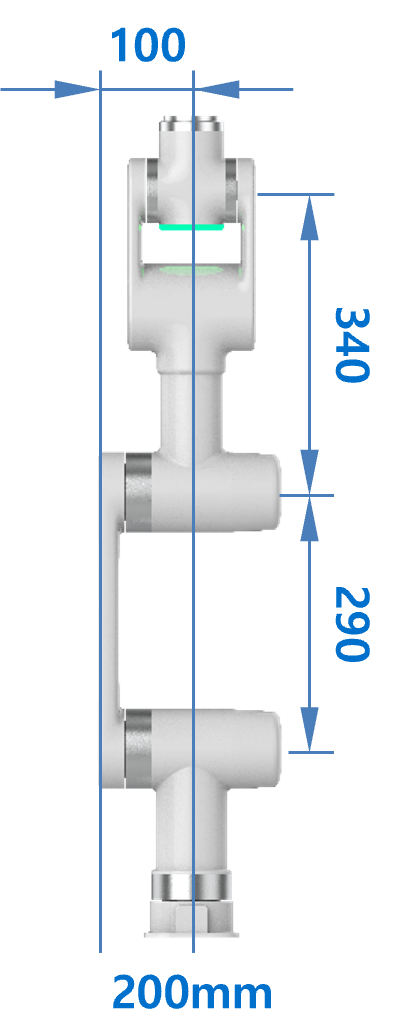

Compact Radius of Rotation
OPTi3's symmetrical arm structure — the same design that minimizes unnecessary movement between left- and right-side welds — lets the folded arm rotate within a 200 mm-diameter envelope. That small swing radius means the robot can pivot between weld positions without extra clearance, making it easier to fit into tight-cell layouts.
OPTi3
Compact welding cobot
Direct Teaching
Collision Detection
Easy Programming
Simple Installation
Compact welding automation.
The OPTi3 is a lightweight collaborative welding robot designed for flexible deployment, intuitive programming, and precision welding in compact manufacturing environments.
